Angular contact ball bearings

Rate this item
(0 votes)

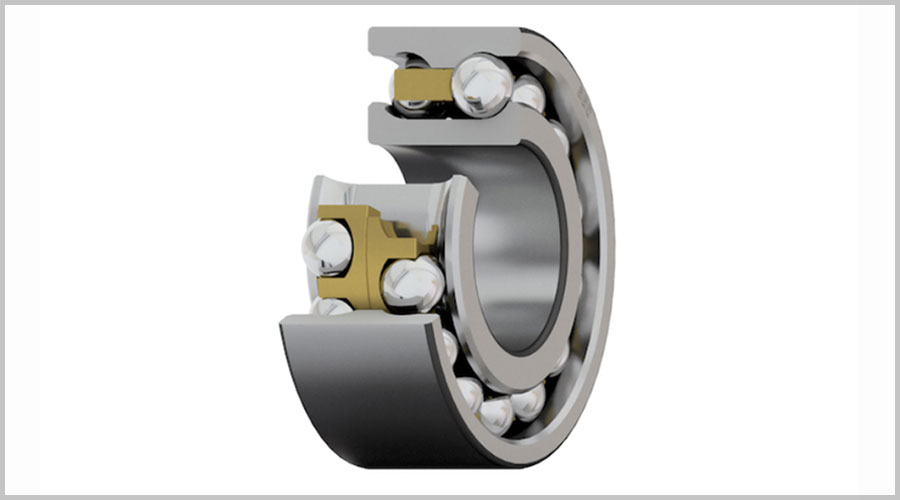

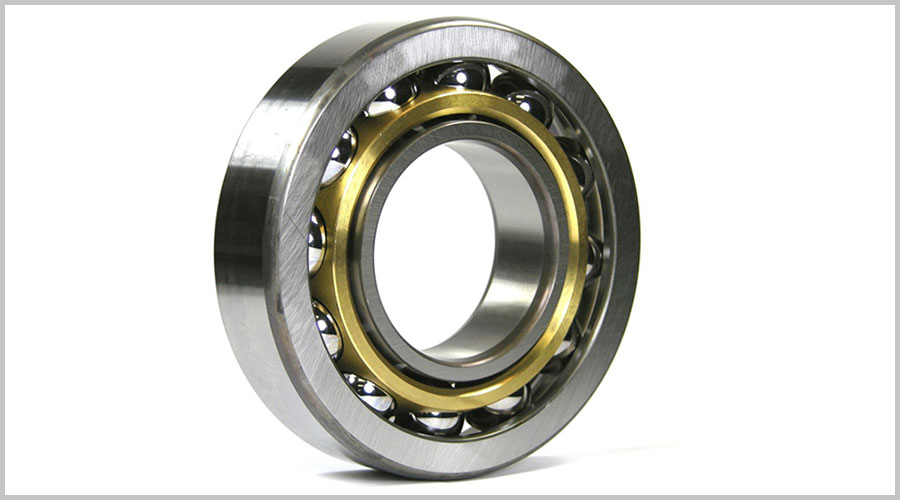

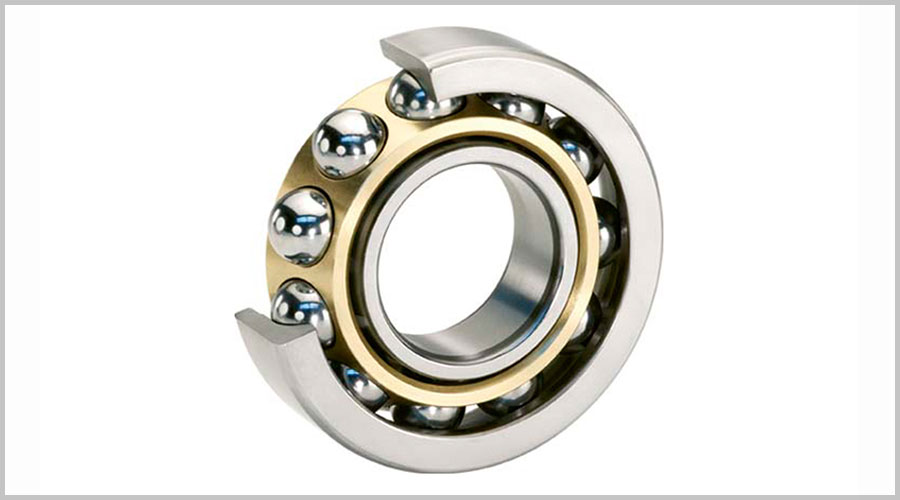

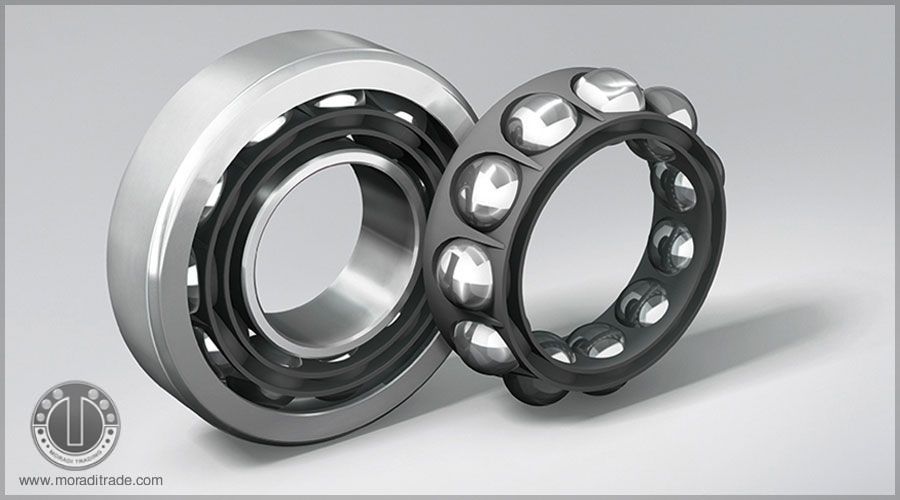

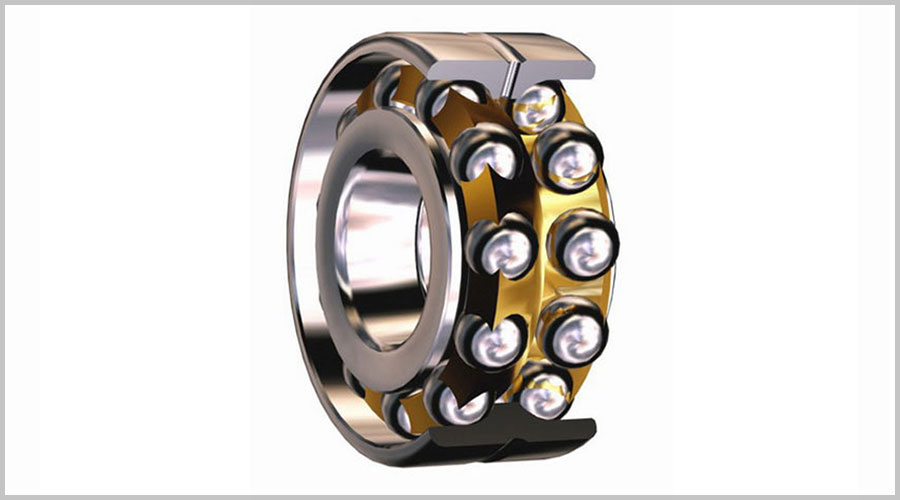

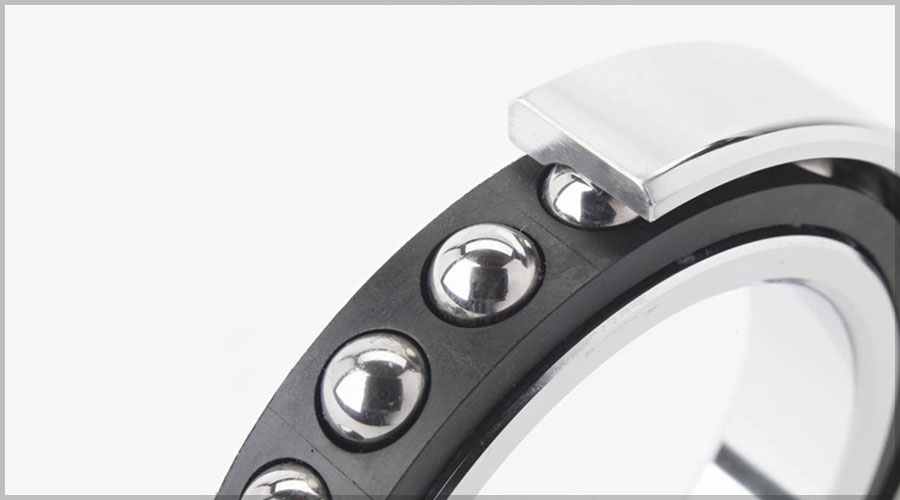

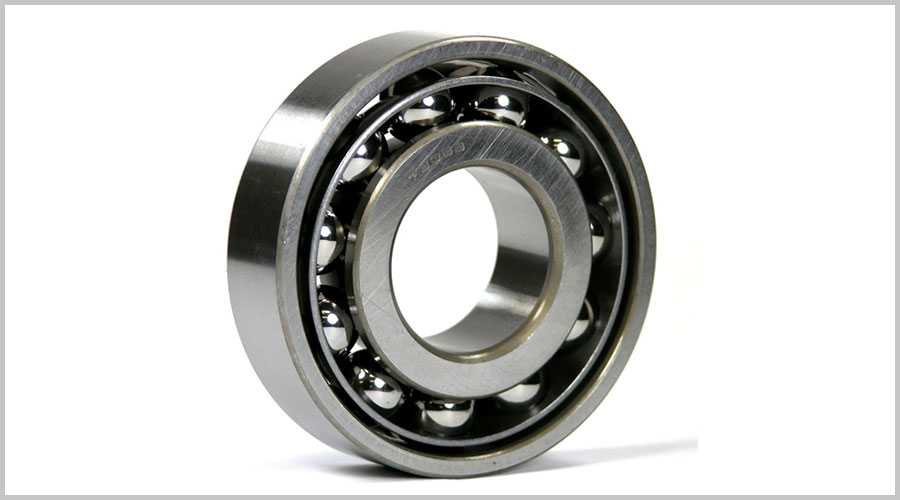

Angular contact ball bearings unite point of contact of the inner ring, ball and the outer ring runs at a certain angle (contact angle) in the radial direction. Bearings are generally designed with three contact angles. Angular contact ball bearings can support an axial load, but cannot be used as single bearing because of the contact angle. They must instead be used in pairs or in combinations. Angular contact ball bearings include double row angular contact ball bearings for which the inner and outer rings are combined as single unite. The contact angle double row angular contact ball bearings is 25°. These type support certain amount of combined loads.
